SENSOR SPECS

SENSOR TYPE

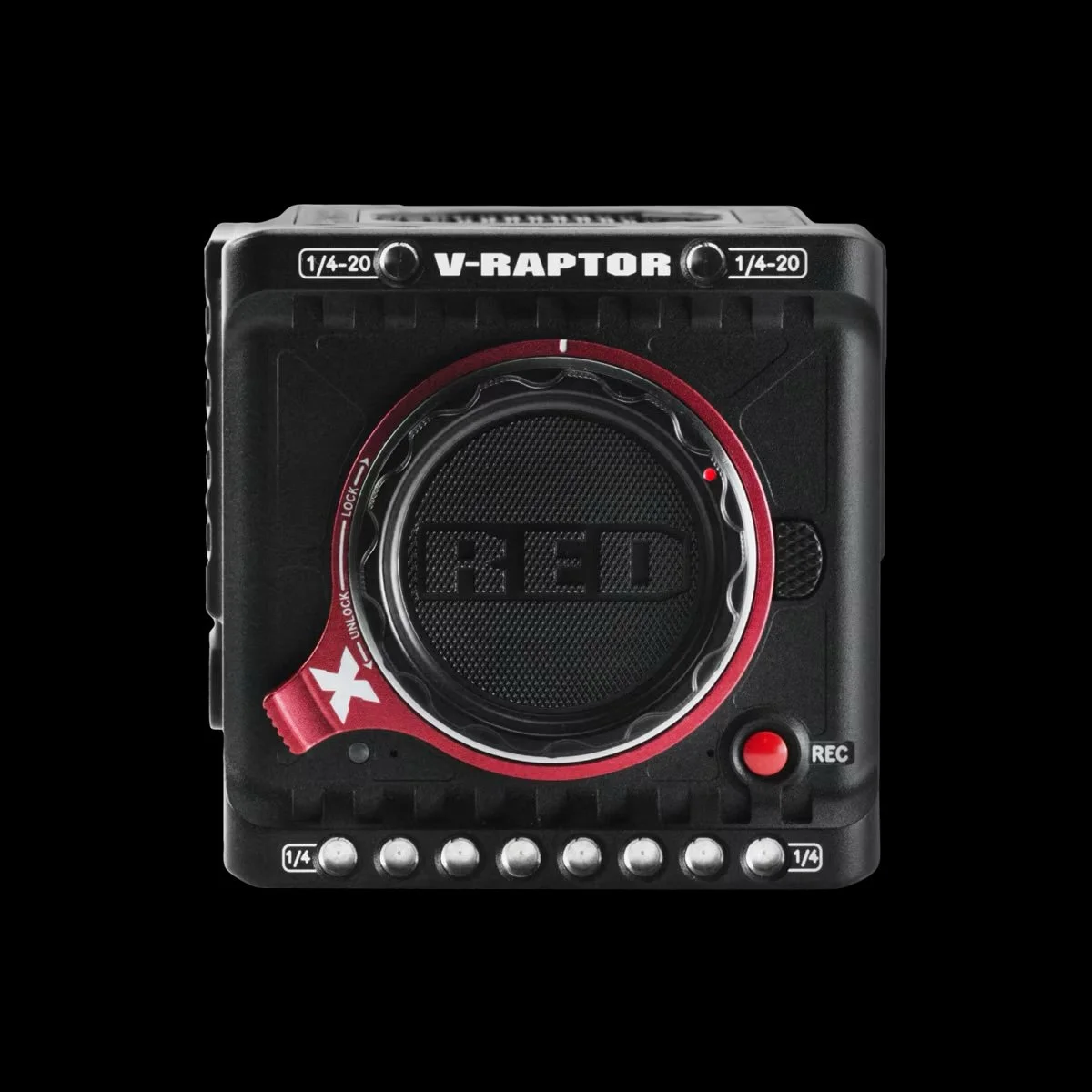

V-RAPTOR® [X] 8K VV 35.4MP Global Shutter CMOS

EFFECTIVE PIXELS

8192 x 4320

SENSOR SIZE

40.96mm x 21.60mm (Diagonal: 46.31mm)

DYNAMIC RANGE

17+ stops

LENS MOUNTMOUNT TYPE

Integrated locking RF mount with electronic communication

Supports /i PL lenses with RED RF to PL Adapters

Supports Canon EF Adapter with communication and other adapters based on the RF mount

RECORDINGMAX DATA RATES

Up to 800 MB/s using RED branded or other qualified CFexpress media cards1

REDCODE® RAW
MAX FRAME RATES

120 fps at 8K 17:9, 150 fps at 8K 2.4:1

140 fps at 7K 17:9, 175 fps at 7K 2.4:1

160 fps at 6K 17:9, 200 fps at 6K 2.4:1

192 fps at 5K 17:9, 240 fps at 5K 2.4:1

240 fps at 4K 17:9, 300 fps at 4K 2.4:1

320 fps at 3K 17:9, 400 fps at 3K 2.4:1

480 fps at 2K 17:9, 600 fps at 2K 2.4:1

PLAYBACK FRAME RATES
(PROJECT TIME BASE)

23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions

BEST AVAILABLE
REDCODE® SETTINGS

REDCODE HQ, MQ, LQ, and ELQ at 8K 17:9 up to 60 fps

REDCODE LQ and ELQ at 8K 17:9 up to 120 fps

REDCODE HQ, MQ, LQ, and ELQ at 6K 17:9 up to 96 fps

REDCODE MQ, LQ, and ELQ at 6K 17:9 up to 160 fps

REDCODE HQ, MQ, LQ, and ELQ at 4K 17:9 up to 240 fps

REDCODE HQ, MQ, LQ, and ELQ at 2K 17:9 up to 480 fps

REDCODE® RAW
ACQUISITION FORMATS

8K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x

7K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x

6K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x

5K 17:9, 2:1, 2.4:1, 16:9, 1:1

4K 17:9, 2:1, 2.4:1, 16:9, 1:1

3K 17:9, 2:1, 2.4:1, 16:9, 1:1

2K 17:9, 2:1, 2.4:1, 16:9, 1:1

APPLE PRORES

Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT at resolutions up to 4K (4096x2160) 120P

Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080) up to 60P.

GENERALCONSTRUCTION

Aluminum Alloy

DIMENSIONS

149.63 x 115.5 x 108mm / 5.9 x 4.5 x 4.3 in (LxWxH, largest fixed dims.)

WEIGHT

4.03 lbs (without body cap and CFexpress card)

MEDIA TYPE

CFexpress Type B

BATTERY TYPE

Integrated V-Lock battery interface optimized for Micro V-Lock Batteries1

DC POWER INPUT

11-17 V via 6-Pin DC-IN

OPERATING TEMPERATURE

0°C to 40°C (32°F to 104°F)

STORAGE TEMPERATURE

-20°C to 50°C (-4°F to 122°F)

STORAGE RELATIVE HUMIDITY

0% to 85% non-condensing

FEATURESRED GLOBAL VISION

Extended Highlights capability to capture more detail and color in extreme dynamic range scenarios.

Phantom Track recording mode to capture multiple LED instances as dedicated clips.

COLOR MANAGEMENT

Image Processing Pipeline 2 (IPP2)

Supports 33×33×33 3D LUTs

Supports import and adjustment of CDLs

AUDIO

Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz

Integrated dual channel (mic/line/+48V) input via 5-Pin 00B Audio Port, uncompressed, 24-bit 48 kHz

3.5mm stereo headphone port

AUTOFOCUS

Phase Detect with Face Detection

IP CONNECTED

Compatible with the RED Connect Module for live 8K R3D video over IP or live 4K over SMPTE ST 2110

Dual band Wi-Fi (2.4 GHz or 5 GHz) for wireless camera control, live preview, and direct Camera to Cloud workflow via FrameIO or Amazon S3

Wired control via USB-C or Ethernet (compatible USB-C to Ethernet adapter1 required) for remote camera control, live preview, direct Camera to Cloud workflow and high speed remote media offload

MONITOR OUTPUTS

Proprietary Top Accessory Port for Monitoring and Control

Integrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes

12G-SDI: Up to 4096 x 2160 4:2:2 for 60p

6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p

3G-SDI: Up to 2048 x 1080 4:2:2 for 60p

1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p

SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio

MONITOR OPTIONS

DSMC3 RED® Touch 7.0” LCD

RED® Compact EVF with DSMC3 Adapter A

Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing

Integrated 2.4" LCD for camera control (no preview video)

ADDITIONAL I/O

Tri-Level Genlock Input via 9-Pin EXT

LTC Timecode Input via 9-Pin EXT

RS232 CTRL (using RCP2) via 9-Pin EXT

SOFTWARERED CONTROL &
RED CONTROL PRO

Access full camera controls and live preview from iOS or Android devices.

Pro App: Operate one or multiple cameras over an IP connection to synchronize settings, manage media files locally or upload directly to FrameIO, develop custom looks with advanced CDL and LUT controls, and more. Ideal for control of multi-camera arrays, multi-cam shoots, and live events, all from one central location.

Standard app available from the Apple App Store and Google Play Store.

RED Control Pro available via Apple App store only and requires additional purchase.

RED Control works wirelessly or wired via USB-C

The RED V-RAPTOR [X] kit come with 1x RED V-RAPTOR [X] Brain

1x RED RF TO PL ADAPTER W/ ELECTRONIC ND FILTER PACK for V-Raptor

1x DSMC3 RED TOUCH 7.0" with Sun Hood

2x RED PRO CFEXPRESS 4TB

1x RED CFEXPRESS CARD READER

1x DSMC3 RED 5-PIN TO DUAL XLR ADAPTER

4x CORE SWX NANO®X Micro 150 Series V-Mount Bateries

1x CORE SWX 4 bay V-Mount charger

1x Mutiny V-RAPTOR IO

1x Complete Ignite Digi Cage system for the V-RAPTOR

1x ARRI Bottom Dovetail Plate 300mm/12in

1x Wodden Camera 19mm Unified Bridgeplate

2x 19mm 12" rods

1x Wooden camera Lense Support
